TEIN FLEX Z Coilovers for 1995-1999 MITSUBISHI ECLIPSE D38A CONVERTIBLE, For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
TEIN FLEX Z Coilovers for 1995-1999 MITSUBISHI ECLIPSE D38A CONVERTIBLE,
Click HERE for more information about this vehicle.
Manufacturer: TEIN
Part Number: VSR56-CUSA3-C
Condition: New
Product Description: FLEX Z inherits all the features and quality of STREET FLEX but the adoption of new platform allows its price to be set at amazingly low range.
After careful consideration, we came to the conclusion that we need to establish new manufacturing system and to develop new product platform, in order to achieve low prices the customers demand. Until now, all TEIN dampers can be disassembled for overhaul; however, we introduce new "Sealed Structure" to FLEX Z.
Full-Length Ride Height Adjustment Feature
Twin-Tube Structure
Damping Force Adjustment System
Complete Kit with Upper Mount
1-Full-Car-Kit
Ride Height Adjustment with Little or No Change in Ride Quality
For Low Resiliency & Securing Sufficient Stroke
16-level Linear Damping Force Adjustment System
Exclusively Designed Upper Mounts are Included (Except Some Models)

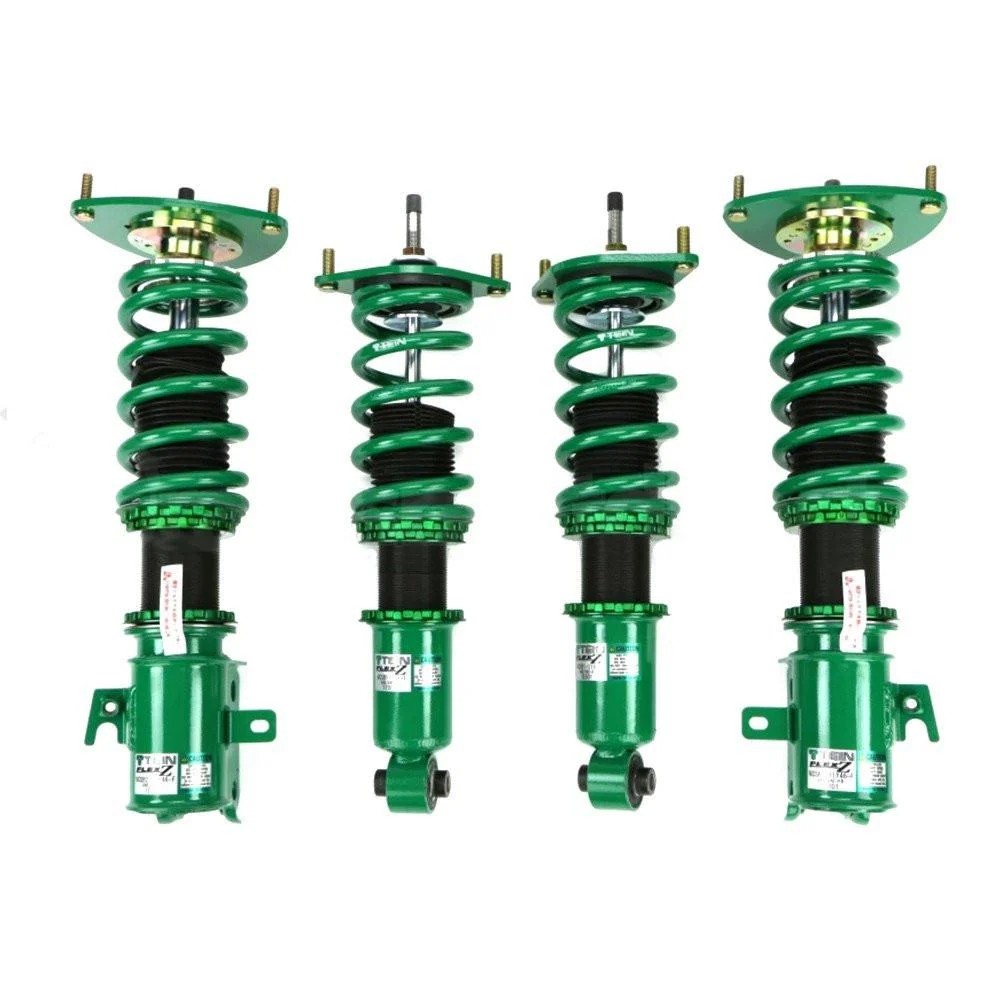

Complete Suspension Kit of 4 Shock Absorbers & 4 Springs Additional Information: Image is only a representation of coilovers. TEIN doesn't have vehicle specific images. Your coilovers will be specific to your vehicle.
PRODUCT: FLEX Z
SPRING: Includes
FRONT DAMPING FORCE ADJUSTMENT: Y
FRONT FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
FRONT UPPER MOUNT: R/U
FRONT RECOMMENDED RIDE HEIGHT (mm): -50
FRONT RECOMMENDED RIDE HEIGHT (inch): -2
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -95
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -3.7
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 1
FRONT RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 0
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -60
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -2.4
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -40
FRONT RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1.6
FRONT SPRING RATE (kgf/mm): 10
FRONT SPRING RATE (lbs/in): 560
FRONT SPRING SP PART#: JA100-1B215-3-C
FRONT SPRING FREE LENGTH (mm): 215
FRONT SPRING I.D. (mm): ID71
REAR DAMPING FORCE ADJUSTMENT: Y
REAR FULL-LENGTH RIDE-HEIGHT ADJUSTABLE: Y
REAR UPPER MOUNT: R/U
REAR RECOMMENDED RIDE HEIGHT (mm): -35
REAR RECOMMENDED RIDE HEIGHT (inch): -1.4
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (mm): -144
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX LOW (inch): -5.7
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (mm): 40
REAR RIDE HEIGHT ADJUSTABLE RANGE MAX HIGH (inch): 1.6
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (mm): -45
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED LOW (inch): -1.8
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (mm): -25
REAR RIDE HEIGHT ADJUSTABLE RANGE RECOMMENDED HIGH (inch): -1
REAR SPRING RATE (kgf/mm):
REAR SPRING RATE (lbs/in):
REAR SPRING SP PART#: SC040-13250-C
REAR SPRING FREE LENGTH (mm):
REAR SPRING I.D. (mm):
EDFC COMPATIBILITY: COMPATIBLE
EDFC FITTING DETAIL:
EDFC MOTOR KIT 1: EDK05-12120
EDFC MOTOR KIT 2:
EDFC FRONT STRUT KIT, EXTENSION KIT:
EDFC REAR STRUT KIT, EXTENSION KIT:
NOTE: 4CYL/TURBO/CONVERTIBLE Guaranteed Fitments: MAKE: MITSUBISHI
MODEL: ECLIPSE
YEAR: 1995-1999
CHASSIS: D38A
TRIM: CONVERTIBLE, 4CYL/TURBO
MOTOR SIZE: 2000
DRIVETRAIN: FF SPARKTEC MOTORSPORTS EBAY STORE POLICIES
